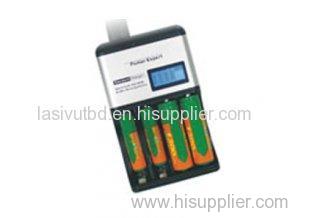

Product Features:

l Suitable for 1-4pcs AA/AAA,  1.2V Ni-MH battery.

l Four independent charging channels,  LCD indicator with blue backlight shows the corresponding charging status.

l Microprocessor control with over-heat protection.

l Control method:-V, 0V, Max T, Max Time , dT/dt, Max V

l Universal voltage 100V-240V.

l Compact design with aluminum cover.

l Primary battery and damaged battery auto-detection

 Technical Parameters:

l Input Voltage:

AC 100-240V,  50/60Hz

l Charging Output:

AA:  1.2Vx2 DC 1200mA

             1.2Vx4 DC 600mA

        AAA: 1.2Vx2 DC 500mA

             1.2Vx4 DC 250mA

l Trickle charging current:AA: 80mA AAA: 40mA

l Operating Temperature:  0-35

l Charging Time(see Table 1)

Charging time calculate formula:

Charging time(h)=  1.3~1.5*battery capacity(mAh)

charging current(mA)

Table 1

Type	Size	Capacity(mAh)	Charging Time(h)
			1-2pcs	3-4pcs
Ni-MH	AAA	600	≈1.6	≈3.1
		700	≈1.8	≈3.6
		900	≈2.3	≈4.7
	AA	1300	≈1.4	≈2.8
		1600	≈1.7	≈3.5
		1800	≈2.0	≈3.9
		2100	≈2.3	≈4.6
		2300	Mr. Barbara xu Tel: 86-755-36977091 Contact to this supplier Related Search Universal Ac Dc Adapter    Ni Mh Battery    Ni-Mh Battery Pack    Ac Dc Power    Ac Dc Power Supply    Dc Ac Power Supply    More>> Find more related products in following catalogs on Hisupplier.com Electronic & Electrical >> Motors & Engines × Company Info Youtech power (shenzhen) Co. Ltd. [China (Mainland)] Business Type:Manufacturer City: Shenzhen Province/State: Guangdong Country/Region: China (Mainland) View Contact Details You May Like: prev Universal AC DC Power Adapter Universal ... universal ac power adapters universal po... Laptop Ac Power Adaptor Ac Notebook Powe... switching ac dc power supply switching p... switching power suppliesswitching power ... ac dc switching power supplies switching... switching power supply adapter high volt... switching power suppliesswitching power ... AC Power Adapters Universal AC Power Sup... Switch Power Supply Switching Power Supp... UL Linearity Power Electronics Adapter 5.7V Linear AC-DC power adapter UL linearity electronics power adapter 15W plug-in switching-mode power adapter 5W Switching Power Supply 12W Switching Power Supply 30W Desktop Adapter IEC320-C8 60950-1 fo... Newest style Universal AC DC Power adapt... 310mA Universal AC Power Adapter 5.7V AV Universal AC Power Adapter Travel Universal AC Power Adapter 7.5W Wall Universal AC/DC Adapter 200mA Universal AC DC Power Adapter Universal AC/DC Power adapter 12V 2A Universal AC DC Power adapter low interference Universal AC/DC Power A... Low cost Universal AC/DC Power Adapter Universal AC/DC Power Adapter For Laptop... 1W Ktec Universal Switching Adapter with... High efficiency Universal AC DC Laptop A... EN60335 Universal AC DC Adapter Universal AC Adapter Wall Charger AC Pow... 310mA Maximum 5.7V AC Open Frame Power A... Smart USB Battery Charger Adapter With U... plug-in ac dc battery charger Portable, Light, and Handy AC/DC Battery... 12W Vertical Adapter for Europe with Rat... Desttop Switching Power Adapter 5W 90V to 264V / 100V to 240V 60HZ - 63H... 1.2A - 80A 120 / 240V, 90V - 264V AC DC ... UK / USA / AU / EU Plug 240mAh 5.7V LED ... 180V - 264V, 0.15A - 60A, 50hz - 60HZ sw... ktec 24W 12V 2A 2pin slim Laptop AC Powe... 90 to 264V 50 / 60Hz 5W AC DC Switching ... 5W Portable CB, GS, CE, UL , CCC, FCC, C... 10W 50HZ / 60hzMobile Phone / PDA / MP3 ... 3 prongs Portable 10W 100V / 240V 0.3A A... 15W 50HZ / 60Hz single pin Slim AC DC Sw... Two pin 15W 47hz - 50hz / 60hz - 63hz 12... USB port 15W 120V 30A, 240V 60A AC Slim ... 65W Switching Universal AC Power Adapter... Ktec 90W KSAFK Laptop AC Power Adapters ... 0.8A - 4.8A 120v / 240V 36W Hybrid AC DC... Ktec 100V - 240V, 1.2V / 4.8V DC Ni-MH L... Remove AC PIN switching power adapter 18... external power suppliesKey Features of K... Most popular switching power adapter Most popular Extra Safe 2 Pin 0.15A 110v... Remove AC PIN switching Mode adapter / U... Mobile Phone 0.3A 110 - 220v AC PIN swit... Green Power 0.3A AC PIN switching power ... Two PIN 10W 100V, 140V, 240V Remove AC s... Green Power PIN Switching Power Adapters... Compact Design 15W 0.4A Auto - Recovery ... CEC level V, MEPS IV EUP2011 AC PIN Swit... 110v ,130v, 240v AC 50 / 60 HZ 2 PIN Swi... Green Power Remove AC PIN switching powe... Remove AC PIN switching power adapter 25... Remove AC PIN switching power adapter 36... Remove AC PIN switching power adapter 45... 5W Hybrid Power Supply 5W Hybrid Power Supply 6W Hybrid Power Supply 10W Hybrid Power Supply 10W Hybrid Power Supply 11W Hybrid Power Supply Eco - Friendly 15W Hybrid Power Supply W... 15W Household Appliance High power Hybri... 2 Pin 15W 0.4A 110v ,130v, 220v Hybrid P... 15W 130v, 150v, 250V Portable Universal ... 24W High Power 2 Pin 120v, 130v ,250v 0.... 25W 2 Pin Travel Portable Universal AC D... 25W Mini Portable Universal AC DC Switch... 45W 1.2A 90v, 110v, 220v Hybrid AC DC Sw... 50W 250v, 230v, 110v Green Power Hybrid ... 1W 0.15A 110v, 220v, 250v Hybrid AC DC S... 2.4W High Power Hybrid Power Supply For ... 12W 50 - 60 HZ Mini Travel Mobile Phone ... 12W Portable 130V, 220V, 240V Hybrid AC ... 15W Hybrid Power Supply / AC DC Switchin... 20W Mini 180v, 200v AC DC Switching Hybr... 20W 110V, 130V, 230V Hybrid AC DC Switch... portable 1A - 60A 47hz - 50hz / 60hz - 6... 36W 110V / 120v / 130v / 210v / 220v / 2... 5W 110v, 220v, 240v AC USB Charger With ... 5W 15A - 30A 120V - 240V AC, 3V - 12V DC... Green Power Supply 3.5W 120v AC Universa... 14W Open Frame Power Supplies 25W Open Frame Power Supplies 30W Open Frame Power Supplies 36W Open Frame Power Supplies 42W Open Frame Power Supplies 50W Open Frame Power Supplies 100W Desttop Switching Adapter Power 120W Desttop Switching Adapter Power 24W Desttop Switching Adapter Power 36W Desttop Switching Adapter Power 40W Desttop Switching Adapter Power 90W Desttop Switching Adapter Power 45W Desttop Switching Adapter Power 30W Desttop Switching Adapter Power Green 2 / 3 prong 120v - 240v 45W usb po... Auto 5.7V car laptop LED Universal AC Po... Auto 310mA single Lithium / AA alkaline ... 5.7V Automatic LED Travel Universal AC P... FCC Class 2 USB port Universal AC Power ... 2A 100V / 240V AC, DC portable USB port ... 36W Portable 47HZ - 50HZ / 60HZ - 63hz A... 2 prong 25W AC, DC USB port Slim switchi... mini slim 0.6A - 60A 120V / 240V switchi... 15W Mini Portable 240V 60A, 100V 50A AC ... 10W 100V,240V 47HZ - 50HZ / 60HZ - 63HZ ... Slim 10W 90V - 264V 50A - 60A AC Laptop ... Auto recovery 6W 0.25mA 3 PIN switching ... Portable balck / white 5.7V AC DC mobile... Mini 5V / 200mA, 4V - 6V / 500mA DC AC S... 15W FCC class 2 build-in EMI LED switchi... 3 holes 110V - 240V AC, 12V - 24V DC, 2.... OEM Slim 12V - 24V 2.5A - 6.25A 65W car ... 120W 100V - 240V AC, 3V - 24V DC 50H / 6... 16V - 24V 0.05A - 3.75A 65W Ktec LED Swi... 65W 2 / 3 Prong 16V - 24V Built-in EMI L... 5W 100V - 240V AC 50 / 60HZ Ktec Switchi... Ktec AC, DC 12W 2A 96V - 264V 50HZ / 60H... Ktec 30W 100 to 240V CB Switching Power ... Ktec 2 / 3 holes Slim 18W 3V - 24V 0.05A... 30W 100v / 210v / 220v / 230v / 240V / 2... General I.T.E 20W 50hz / 60hz 90v - 264V... Eco friendly 2-pin 15W Hybrid AC DC Swit... 12W 0.4A 47hz - 50hz /60hz - 63hz Hybrid... 12W 0.4A 120V / 240V Mobile phone / Pos ... 2.4W portable 180v / 190v / 200v / 210v ... 1W 0.15A 50hz - 60hz AC DC Switching Pow... 50W 90v / 100v / 110v / 120v / 130v car ... 45W single pin 1.2A 90V to 264V AC DC Sw... 25W Mini 30A - 60A 120V / 240V AC DC Swi... 24W 120v / 240V 0.6A - 60A AC DC Switchi... single pin 11W 100v / 240V 60A AC DC Swi... Eco friendly Mini 6W 90v - 264V switchin... Ktec Switching 35W 4.5V - 24V / 100V - 2... 10W 3v to 24V / 100v to 240V Ktec AC DC ... Mobile Phone 47hz - 50hz / 60hz - 63hz A... High Efficiency 5W 0.25mA Max Universal ... Slim 5W 90V to 264V AC DC Household Univ... Two pin 5V 1A Portable Auto Travel Unive... 2 pin Ktec 5V US, UK, EU, AU plug Univer... 2 / 3 prong Mini wall-mount Universal US... Ktec EU, UK, US, CH, AU plug 2.8V - 12V ... 100v - 240V AC 50HZ / 60HZ Universal USB... Burn-in EMI Portable Auto Universal USB ... 5V - 5.5V DC, 100V - 250V AC 60Hz LED Un... Ktec 5W white / black 2.8V to 12V, 10ma ... EU / US / UK / AU metal Plug-in 5v 1A Un... UL / EU / AU / UK Portable 5V 1A AC DC U... 2.4v - 36V, 20ma - 4000ma EU / CE Plug-I... Automatic 2 / 3 prong 310mA 5.7V USB por... Switching mode 200mA 50hz / 60HZ EU, UK,... Auto Adjustable 310mA 5.7V LED Universal... Ktec 2 pin portable 11.4V - 12.6V 2A Uni... Mini Ktec UK / USA / AU / EU Plug led Un... Portable 45W 40A - 80A 100V / 240V AC Au... Green 30W 0.8A - 60A 100V / 240V Desktop... 90W 40V - 120V AC Desktop Switching Powe... Green 40W 0.8A - 80A 100v, 120v, 240v De... 36W 12V, 230V 0.25 mA - 60A Laptop / Set... Green 24W 0.6A - 60A 189V to 264V AC / D... Ktec 120W High Power Density Desttop Swi... 60W 9-pin Slim Desktop Switching Power A... Ktec usb port LED 310mA 5.7V DesKtop Swi... 11W 0.5A - 60A 100V to 240V AC USB Smart... 4W 100v / 120v / 240V 15A - 30A AC Slim ... 100V to 240V 50HZ / 60HZ USB port Smart ... 2-pin CEC V / US / CCC 5V 1A Smart Car B... Mini 5v -12V 1A DC USB port Smart Car Ba... 4 PIN 3V - 10V 0.1A-1A Smart Car Battery... 65W 210v / 220v / 230v / 240v Green powe... 30W 0.8A - 60A 90V / 100v / 110v / 120v ... 7.5W 100V - 240V Wall Mount Switching 50... Switching mode 100v to 240V AC 50HZ / 60... next Product (189) Others (189) Printable Page   Bookmark this page Sitemap   XML   About HiSupplier   Help Center    Customer Service   Friend Links   Site Map   Archives Browse by: China Suppliers - Hot Products - Products Directory - Offers Directory - Suppliers Directory - Buyers Directory Language Option: العربية - Nederlands- Français- Deutsch- Italiano- 日本語- 한국의- Português- Pусский- Español Copyright © HiSupplier.com Online Inc. All Rights Reserved.
